उत्पत्ति के प्लेस:
अनहुई, चीन
ब्रांड नाम:
WNK
प्रमाणन:
ISO
मॉडल संख्या:
डब्लूएनके-621

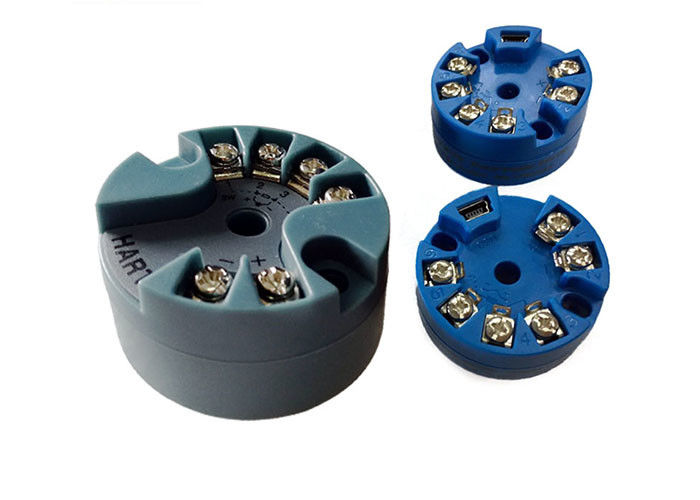

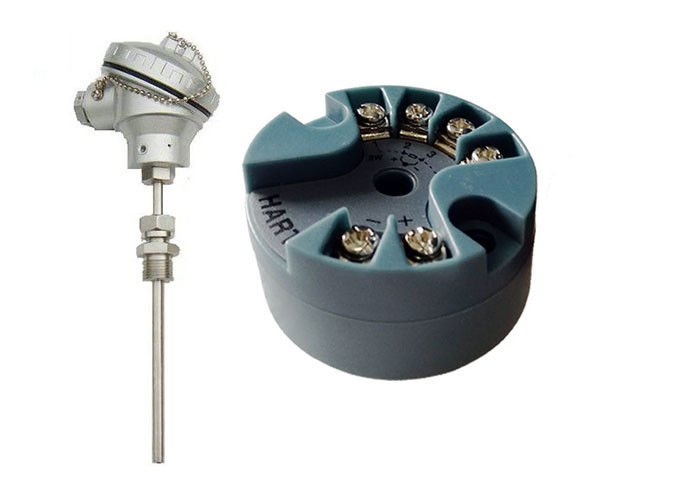

Industrial Integrated Head Mounted Temperature Transmitter With Hart Protocol
WNK65 4~20mA two-wire integrated circuit board is specifically designed for intelligent temperature transmitters. The compact head mounted transmitter type is designed for standard type B sensor heads. The advantage increased measuring accuracy resulting from conversion of the sensor signal into a stable output signal close to the sensor. For thermocouple applications without compensation cables.
Specifications
| Measuring media | liquid, gas and steam | ||
| Measuring range | -270~800 ºC (PT100 thermal resistor) | ||
| 0~1300ºC, (Thermocouple K) | |||
| Input | Thermocouple, RTD, MV, Resistive sensor | ||
| Power supply range | 9~45V (9~24V, Ex) | ||
| Output signal | 4~20mA/Hart/Profibus PA | ||
| Digital Accuracy | ±0.01ºC, PT100 input | ||
| Internal cold end compensation error | <0.25ºC±0.1%/10ºC | ||
| Temperature drift | ±0.05%/10ºCfull scale range | ||
| 0.1% between-10°C to 60°C | |||
| Effect of power supply on range | <0.005%/V full-scale range | ||
| Long term drift | <0.1/year | ||
| Ambient temperature | Ambient temperature | Storage temperature | |
| T4 | Safe operation(T6) | ||
| -40...85ºC | -40...60ºC | -40...95ºC | |
| Protection Class | IP66/67 | ||
| Relative humidity | ≤98%, condensation allowed | ||
| Electromagnetic compatibility | Accordance with EN 61 326 | ||
Features
