घर > उत्पादों > Head Mounted Temperature Transmitter >

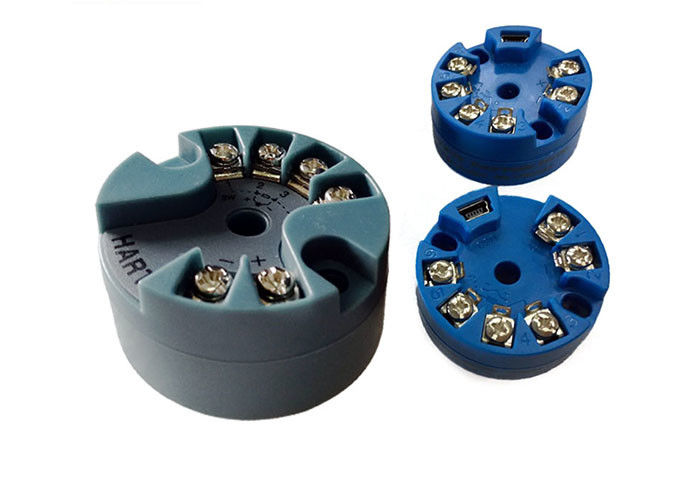

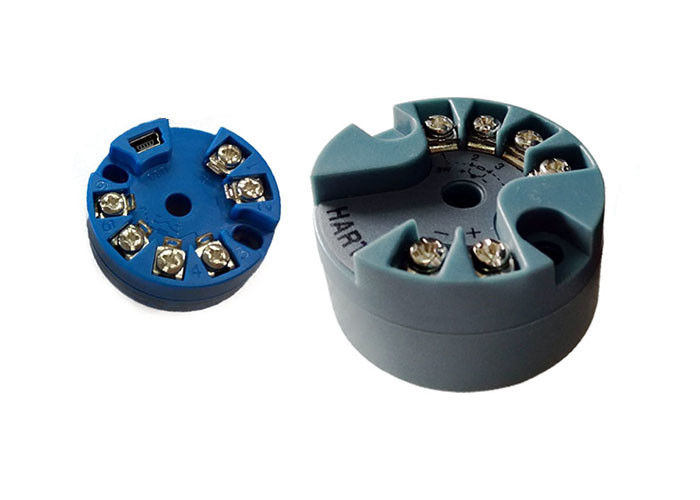

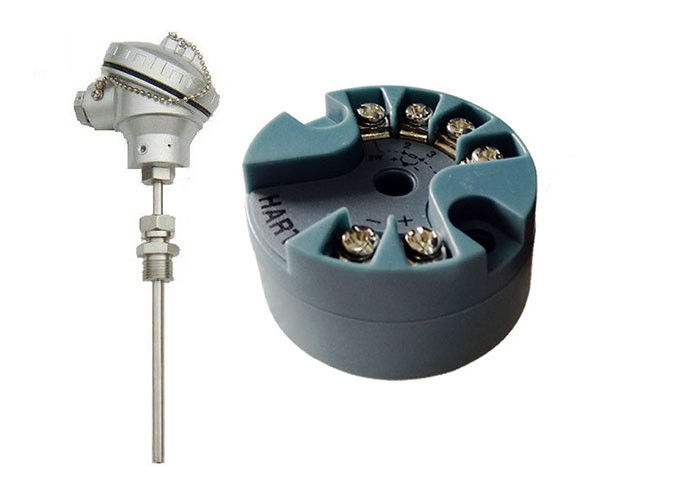

44mm Dimension Head Mounted Temperature Transmitter Module 0.5%FS Accuracy

44mm Dimension Head Mounted Temperature Transmitter Module 0.5%FS Accuracy

high accuracy temperature transmitter

field mounted temperature transmitter

उत्पत्ति के प्लेस:

अनहुई, चीन

ब्रांड नाम:

WNK

प्रमाणन:

ISO

मॉडल संख्या:

डब्लूएनके-621

हमसे संपर्क करें
बोली मांगें
44mm Dimension Head Mounted Temperature Transmitter Module 0.5%FS Accuracy 44mm Dimension Head Mounted Temperature Transmitter Module 0.5%FS Accuracy 44mm Dimension Head Mounted Temperature Transmitter Module 0.5%FS Accuracy
Product Details
इनपुट:
थर्मोकपल, आरटीडी
संकेत:
4-20mA 2-तार
आवेदन:
औद्योगिक
शुद्धता:
0.25%, 0.5%एफएस
इनपुट शक्ति:
24V डीसी
आयाम:
44 मिमी
प्रमुखता देना:

high accuracy temperature transmitter

,

field mounted temperature transmitter

Payment & Shipping Terms
न्यूनतम आदेश मात्रा
5 पीसीएस
मूल्य
negotiable
पैकेजिंग विवरण
मानक निर्यात कार्टन पैकिंग
भुगतान शर्तें
टी/टी, वेस्टर्न यूनियन, मनीग्राम
RELATED PRODUCTS
अच्छा दाम Head Mounted Industrial Temperature Transmitter OEM 4 - 20mA 24V Power Supply ऑनलाइन

Head Mounted Industrial Temperature Transmitter OEM 4 - 20mA 24V Power Supply

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम 4 - 20mA PT100 Head Mounted Temperature Transmitter 24V Power Supply Range ऑनलाइन

4 - 20mA PT100 Head Mounted Temperature Transmitter 24V Power Supply Range

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम 44mm Dimension Head Mounted Temperature Transmitter Module 0.5%FS Accuracy ऑनलाइन

44mm Dimension Head Mounted Temperature Transmitter Module 0.5%FS Accuracy

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम RTD PT100 4-20mA Head Mounted Temperature Transmitter with English Calibration Software ऑनलाइन

RTD PT100 4-20mA Head Mounted Temperature Transmitter with English Calibration Software

सबसे अच्छी कीमत प्राप्त करें
हमसे संपर्क करें
अब संपर्क करें
Product Description

Head Mounted Smart Temperature Transmitter Temperature Sensor Module For Pt100 Pt1000





Description


Integrated temperature transmitter is loading transmitter module In the junction box of the assembly temperature sensor ,out put signal is 4-20mA DC,with HART or not,or LCD LED display.It directly measure the temperature of liquid,gas medium.

  • TWO wire 4-20mA,Save compensation wire,High anti-interference ability.
  • Linearization function,Automatic compensation for cold.
  • Safe and reliable life
  • Site parameter setting,facilitate user
  • With Hart




Features

  • Two-wire work mode
  • Pt100,Cu50,Cu100, Pt1000 Four thermal resistance full measurement range
  • K, S, R, B, N, E, J, T Eight thermocouples full range measurement
  • Cold end automatic compensation
  • Thermal resistance three-wire measurement automatically eliminating the lead resistance
  • Thermal resistance/ Thermocouple disconnection fault prompts and output processing;
  • Independent setting for temperature transmission output range
  • High accuracy, low temperature drift



Datasheet


Measuring media liquid, gas and steam
Measuring range -270~800 ºC (PT100 thermal resistor)
0~1300ºC, (Thermocouple K)
Input Thermocouple, RTD, MV, Resistive sensor
Power supply range 9~45V (9~24V, Ex)
Output signal 4~20mA/Hart/Profibus PA
Digital Accuracy ±0.01ºC, PT100 input
Internal cold end compensation error <0.25ºC±0.1%/10ºC
Temperature drift ±0.05%/10ºCfull scale range
0.1% between-10°C to 60°C
Effect of power supply on range <0.005%/V full-scale range
Long term drift <0.1/year
Ambient temperature Ambient temperature Storage temperature
T4 Safe operation(T6)
-40...85ºC -40...60ºC -40...95ºC
Protection Class IP66/67
Relative humidity ≤98%, condensation allowed
Electromagnetic compatibility Accordance with EN 61 326



44mm Dimension Head Mounted Temperature Transmitter Module 0.5%FS Accuracy 0
