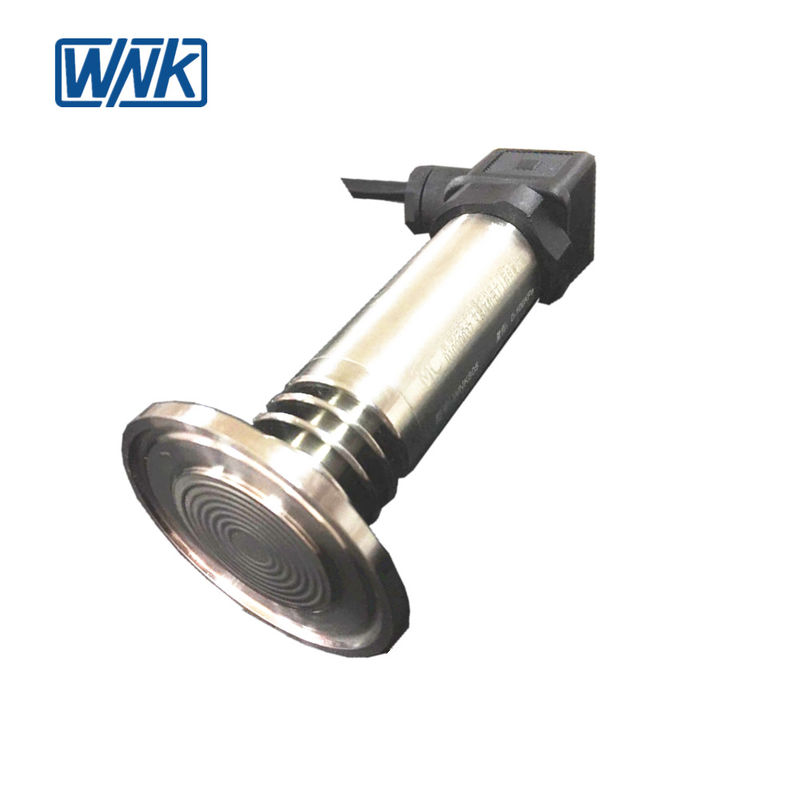

Name: Food Grade Sanitary Flush Industrial Pressure Transmitter 4-20mA Output
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK805
Price: 403.00 USD
Availability: InStock

घर > उत्पादों > Sanitary Pressure Sensor >

Food Grade Sanitary Flush Industrial Pressure Transmitter 4-20mA Output

Hygienic Industrial Pressure Transmitter

Food Grade Sanitary Pressure Sensor

4-20mA Industrial Pressure Transmitter

उत्पत्ति के प्लेस:

हेफ़ेई, सीएन

ब्रांड नाम:

WNK

प्रमाणन:

CE, SGS, ISO9001, NEPSI

मॉडल संख्या:

WNK805

हमसे संपर्क करें

बोली मांगें

Product Details

लागू माध्यम:

गैस, पानी, तरल

श्रेणी:

0-0.2 ~ -100kPa; 0-0.2 ~ -100 केपीए; 0-0.2 ~ 1000kPa 60000kPa 0-0.2 ~ 1000kP

रैखिक सटीकता:

00.5% एफएस 0.25% एफएस

प्रकार:

गेज, निरपेक्ष, नकारात्मक

कार्य तापमान:

-40 ～ 85 ℃

बिजली का संपर्क:

हिर्शमन कनेक्टर

सबूत:

आईपी67

शक्ति:

24वीडीसी, 12-32वी

प्रमुखता देना:

Hygienic Industrial Pressure Transmitter
,
Food Grade Sanitary Pressure Sensor
,
4-20mA Industrial Pressure Transmitter

Payment & Shipping Terms

न्यूनतम आदेश मात्रा

1 टुकड़ा

मूल्य

negotiable

पैकेजिंग विवरण

समुद्र-योग्य पैकिंग या वायु-योग्य पैकिंग

प्रसव के समय

5-8 कार्य दिवस

भुगतान शर्तें

टी/टी, वेस्टर्न यूनियन

आपूर्ति की क्षमता

प्रति माह 5000PCS

RELATED PRODUCTS

वीडियो

DIN43650 M12 Cable Hygienic Sanitary Pressure Transducer

सबसे अच्छी कीमत प्राप्त करें

वीडियो

Medical Flat Membrane Sanitary Pressure Sensor , Flush Diaphragm Pressure Transmitter

सबसे अच्छी कीमत प्राप्त करें

वीडियो

High Temperature Pressure Sensor 120 Deg 4~20mA With Flush Diaphragm

सबसे अच्छी कीमत प्राप्त करें

वीडियो

Hirschman Tri-clamp Sanitary Pressure Transmitter 4~20mA for Food Medical

सबसे अच्छी कीमत प्राप्त करें

हमसे संपर्क करें

अब संपर्क करें

Product Description

4-20mA Output Food Grade Sanitary Flush Diaphragm Hygienic Industrial Pressure Transmitter

Food Grade Sanitary Flush Diaphragm Pressure Transmitter

Specifications

The Series WNK805 Sanitary Pressure Transmitter is designed to meet the applications in food, dairy, beverage and pharmaceutical processing, liquid level control, and sanitary pipelines. The unit is fully sealed to withstand high pressure wash-down in Clean-in-Place and Sterilize-in-Place installations.

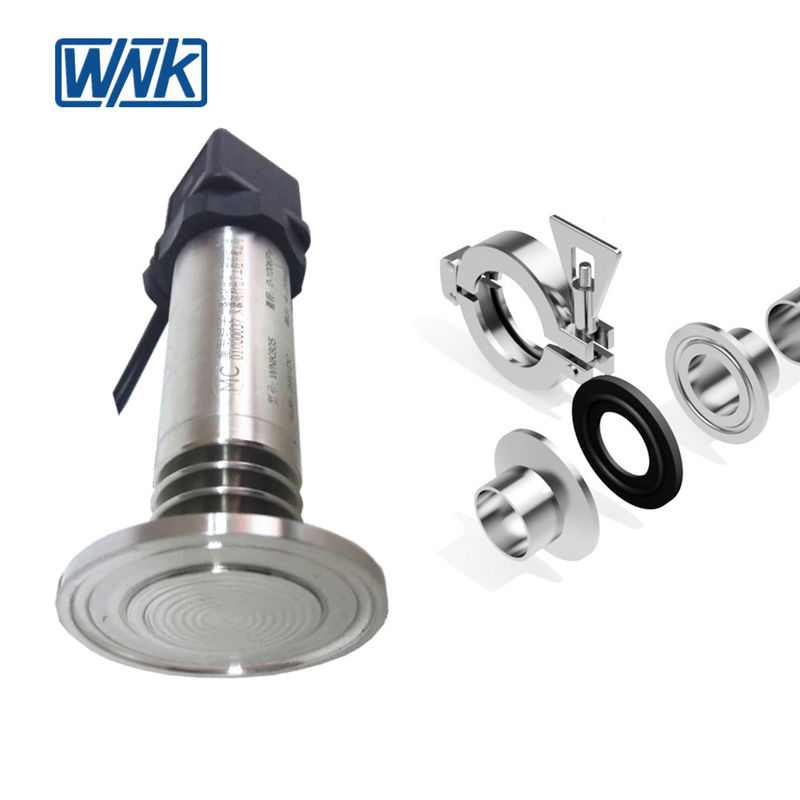

Tri-clamps are one of the most common types of pipe connections in the food, beverage, biotech, and pharmaceutical industries. This type of connection consists of a gasket compressed between two tri-clamp ferrules or flanges which are mechanically compressed in place with a clamp. Tri-clamp fittings are available in a variety of sizes, can be constructed from either steel or plastic, and can be either permanent or temporary. The clamp itself also comes in a variety of designs for ease of disassembly and cleaning.

It is therefore essential to select the right type of tri-clamp fitting to ensure the connection operates effectively in a given application. Choosing the right size and type of fitting can help minimize or eliminate contamination, bacterial growth, leaks, and deterioration of the connection material.

High Temperature Sanitary Clamp Flush Type Pressure Transmitter

Applicable media

Liquid, Gas, Steam

Pressure measurment

Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure

Pressure range

0-0.2 ...100kPa, 0-0.2 ...1000kpa, 60 MPa

Output signals

Typical output 4...20mA, 0.5...4.5VDC, For option: 1-5V, 0-5V, 0-10V DC

Accuracy

0.25%, 0.5%, 1.0%FS

Stability

±0.25% FS/year

Zero drift

50% of full range span.

Max overload

200% of sensor range

Display

LED (Optional)

Housing material

304SS, 316L

Mechanical connection

Clamp,Flush and Flange

Power supply

Non-explosion: 10.5~45V DC

EEX ia:10.5~30 V DC

Ambient temperature

-40~85℃

Process temperature

-40~85℃

Features

- Standard ranges from vacuum to 60Mpa

- Accuracy up to ±0.25%

- 4-20 mA 2-wire output signal, others available

- Highly resistant to pressure spikes and vibration

- Stainless steel case and wetted parts

- Full range of process and electrical connections

- Assemble to diaphragm seals for special applications

- Suitable for gas, liquid, steam pressure measurement

- Intelligent digital circuit with precise temperature characteristic compensation

- Tantalum sensor contact for option for pressure measurement with corrosive media

Tags：

digital pressure sensor

sanitary pressure transducer

sanitary pressure transmitter

अपनी पूछताछ सीधे हमें भेजें

High Temperature Sanitary Clamp Flush Type Pressure Transmitter
Applicable media	Liquid, Gas, Steam
Pressure measurment	Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
Pressure range	0-0.2 ...100kPa, 0-0.2 ...1000kpa, 60 MPa
Output signals	Typical output 4...20mA, 0.5...4.5VDC, For option: 1-5V, 0-5V, 0-10V DC
Accuracy	0.25%, 0.5%, 1.0%FS
Stability	±0.25% FS/year
Zero drift	50% of full range span.
Max overload	200% of sensor range
Display	LED (Optional)
Housing material	304SS, 316L
Mechanical connection	Clamp,Flush and Flange
Power supply	Non-explosion: 10.5~45V DC
Power supply	EEX ia:10.5~30 V DC
Ambient temperature	-40~85℃
Process temperature	-40~85℃
