Name: 4-20mA Air Water Micro Differential Smart Pressure Transmitter For Gas Steam
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK808N1
Price: 45.00 USD
Availability: InStock

घर > उत्पादों > Smart Pressure Transmitter >

4-20mA Air Water Micro Differential Smart Pressure Transmitter For Gas Steam

Micro Differential smart pressure transducer

20mA gas pressure transmitter

Micro Differential gas pressure transmitter

उत्पत्ति के प्लेस:

अनहुई, चीन

ब्रांड नाम:

WNK

मॉडल संख्या:

WNK808N1

हमसे संपर्क करें

बोली मांगें

Product Details

मापा मीडिया:

वायु, गैस

दबाव सीमा:

-0.25-0.25kpa/-0.5-0.5kpa/-1-1kpa/-2-2kpa/-7-7kpa/-100-100kpa

आउटपुट सिग्नल:

2-वायर 4-20mA/0-10V/RS485/2xPNP

शुद्धता:

± 0.1% एफएस

बिजली की आपूर्ति:

12-32 वी डीसी

बिजली के कनेक्शन:

टर्मिनल या एम12

बाहरी भार:

≥500Ω

नाम:

4-20mA वायु जल सूक्ष्म विभेदक दबाव ट्रांसमीटर

प्रमुखता देना:

Micro Differential smart pressure transducer

20mA gas pressure transmitter

Micro Differential gas pressure transmitter

Payment & Shipping Terms

न्यूनतम आदेश मात्रा

1 सेट

मूल्य

negotiable

पैकेजिंग विवरण

सुरक्षा के साथ एक व्यक्तिगत कार्टन पैकिंग में प्रत्येक सेट

प्रसव के समय

बातचीत करने के लिए

भुगतान शर्तें

टी/टी, वेस्टर्न यूनियन, मनीग्राम

आपूर्ति की क्षमता

-45 से 85ºC, एलसीडी हेडर के लिए -40 से 80ºC

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

सबसे अच्छी कीमत प्राप्त करें

वीडियो

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

सबसे अच्छी कीमत प्राप्त करें

वीडियो

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

सबसे अच्छी कीमत प्राप्त करें

वीडियो

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

सबसे अच्छी कीमत प्राप्त करें

हमसे संपर्क करें

अब संपर्क करें

Product Description

Micro Differential Pressure Transmitter

Product Description

Intelligent Macro Differential Pressure Transmitter
Applicable media	Gas, Steam
Pressure Measurement	Gauge pressure, Differential pressure
Pressure range	-0.25-0.25kPa/-0.5-0.5kPa/-1-1kPa/-2-2kPa/-7-7kPa/-100-100kPa
Accuracy	±0.1%FS
Stability	0.8%F.S./Year
Max overload	250% of sensor range
Output signals	2-Wire 4-20mA/0-10V/RS485/2xPNP
Electrical Connections	Terminal or M12
Power Supply	12-32V DC
Compensation Temperature	0-60℃

Outstanding advantages and main selling points of the productHigh precision, slight differential pressure: measuring range is within ±1KPa, accuracy grade is ±0.1% FS.Minimum range: ±50Pa, accuracy grade ±0.5% FS.Real-time display, no lag: response time ≤100ms, real-time display of measurement data, no damping delay.High and low end interchange: Through key operation, the test high and low voltage ports can be interchanged.

Application

It is widely used in various industrial automatic control occasions, involving many industries such as fire protection, environmental protection, medical treatment, aviation, and industrial control. Such as negative pressure ward, central air-conditioning, elevator warehouse and other slight differential pressure measurement.

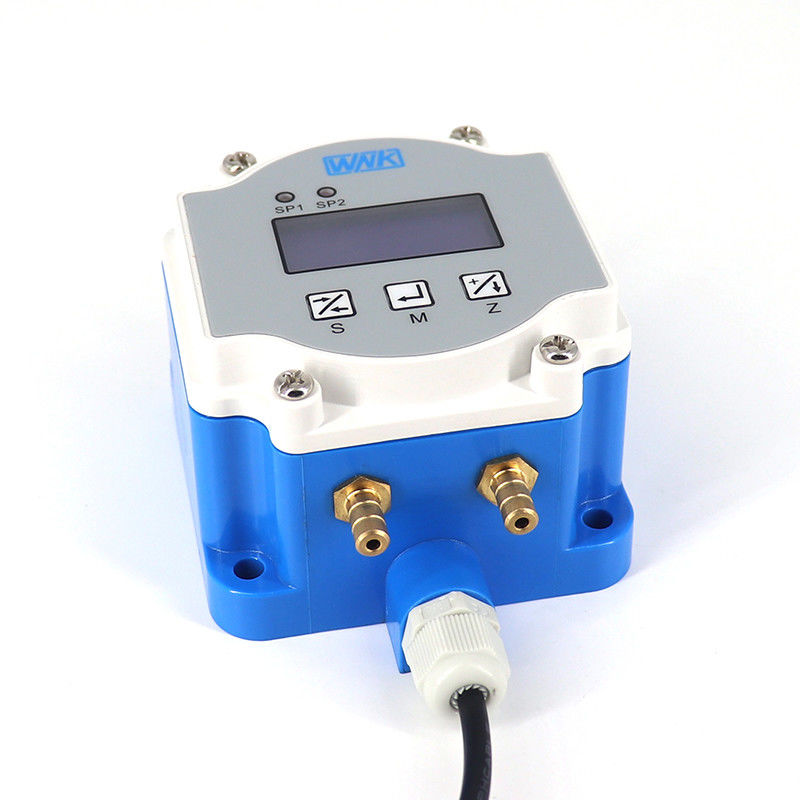

4-20mA Air Water Micro Differential Smart Pressure Transmitter For Gas Steam 0

Product Show

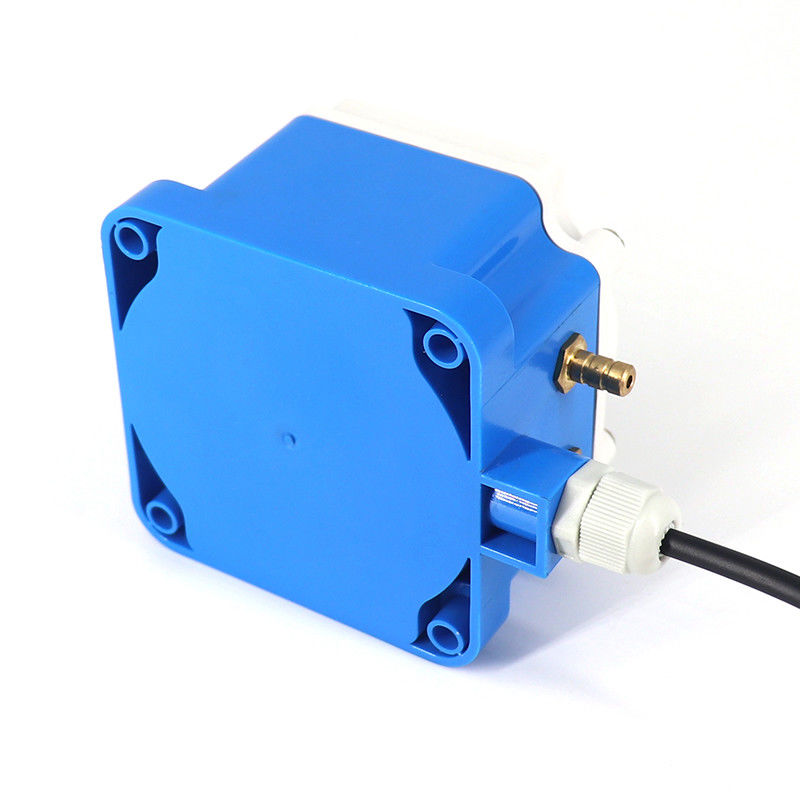

4-20mA Air Water Micro Differential Smart Pressure Transmitter For Gas Steam 1
