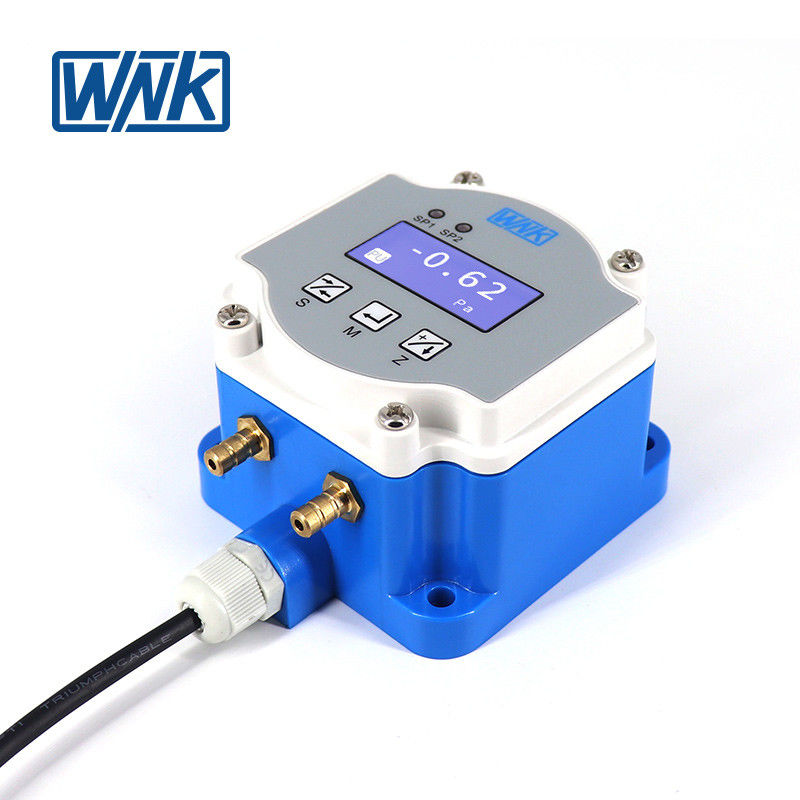

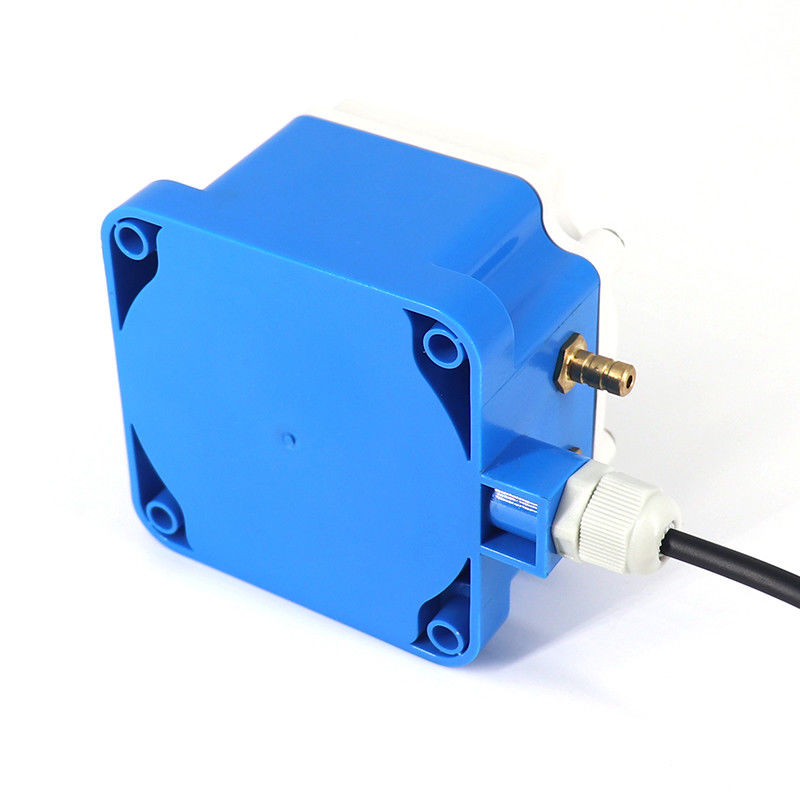

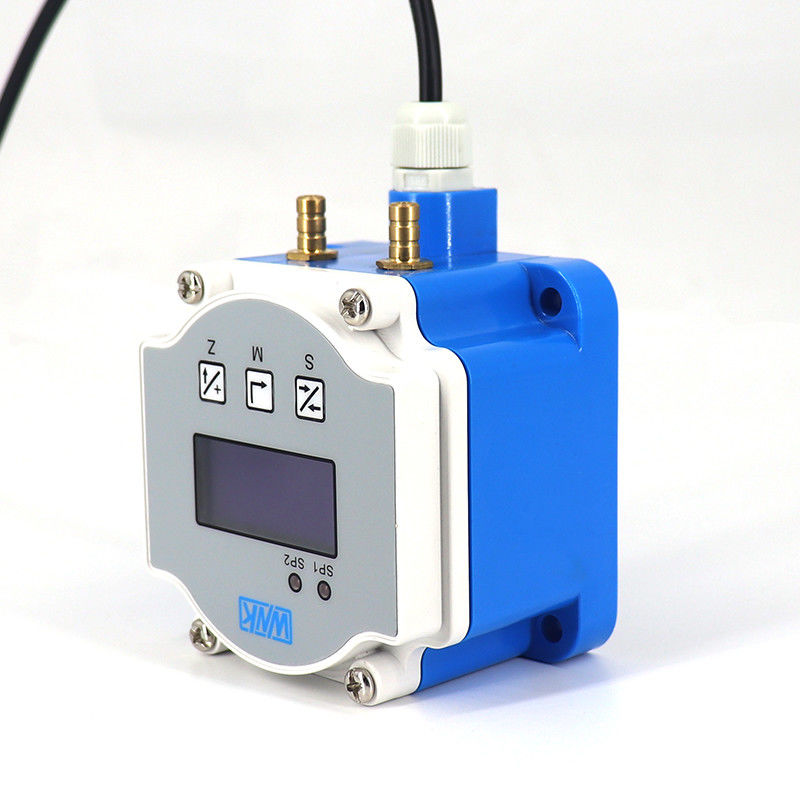

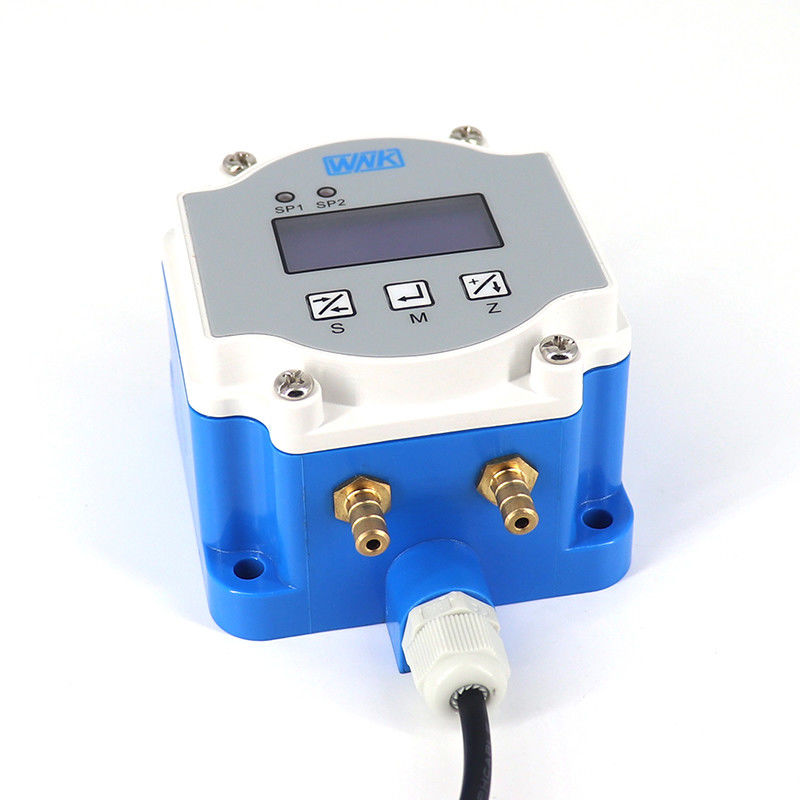

High Accuracy 4-20ma 0-10v RS485 DP Differential Pressure Transmitter For Air

High Accuracy 4-20ma 0-10v RS485 DP Differential Pressure Transmitter For Air

RS485 Differential Pressure Transmitter

4-20ma Differential Pressure Transmitter

RS485 DP pressure transmitter

उत्पत्ति के प्लेस:

अनहुई, चीन

ब्रांड नाम:

WNK

मॉडल संख्या:

WNK808N1

हमसे संपर्क करें
बोली मांगें
Product Details
मापा मीडिया:
वायु, गैस
दबाव सीमा:
-0.25-0.25kpa/-0.5-0.5kpa/-1-1kpa/-2-2kpa/-7-7kpa/-100-100kpa
आउटपुट सिग्नल:
2-वायर 4-20mA/0-10V/RS485/2xPNP
शुद्धता:
± 0.1% एफएस
बिजली की आपूर्ति:
12-32 वी डीसी
बिजली के कनेक्शन:
टर्मिनल या एम12
बाहरी भार:
≥500Ω
प्रमुखता देना:

RS485 Differential Pressure Transmitter

,

4-20ma Differential Pressure Transmitter

,

RS485 DP pressure transmitter

Payment & Shipping Terms
न्यूनतम आदेश मात्रा
1 सेट
मूल्य
negotiable
पैकेजिंग विवरण
सुरक्षा के साथ एक व्यक्तिगत कार्टन पैकिंग में प्रत्येक सेट
प्रसव के समय
बातचीत करने के लिए
भुगतान शर्तें
टी/टी, वेस्टर्न यूनियन, मनीग्राम
आपूर्ति की क्षमता
-45 से 85ºC, एलसीडी हेडर के लिए -40 से 80ºC
RELATED PRODUCTS
अच्छा दाम G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam ऑनलाइन वीडियो

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT ऑनलाइन वीडियो

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE ऑनलाइन वीडियो

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor ऑनलाइन वीडियो

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

सबसे अच्छी कीमत प्राप्त करें
हमसे संपर्क करें
अब संपर्क करें
Product Description

 Hvac Differential Air Pressure Sensor For RS485

Product Description

WNK808N1 intelligent pressure transmitter is assembled with aluminum housing and stress isolation technology. Integrated structure design lead to compact layout. With intelligent compensation technology, it is suitable for wind pressure,wind speed & flow measurement. It is widely used in various industrial fields as well as intelligent building and other construction projects, such as power plant boiler primary air,secondary air measuring, mine ventilation,indoor ventilation, boiler air, pressure of fan, air duct pressure, Metro wind pressure and environment wind pressure test.



Intelligent Macro Differential Pressure Transmitter
Applicable media
Gas, Steam
Pressure Measurement
Gauge pressure, Differential pressure
Pressure range
-0.25-0.25kPa/-0.5-0.5kPa/-1-1kPa/-2-2kPa/-7-7kPa/-100-100kPa
Accuracy
±0.1%FS
Stability
0.8%F.S./Year
Max overload
250% of sensor range
Output signals
2-Wire 4-20mA/0-10V/RS485/2xPNP
Electrical Connections
Terminal or M12

Power Supply
12-32V DC
Compensation Temperature
0-60℃

Application


It is the best micro pressure measurement equipment for textile machinery,natural gas pipeline monitoring,dust removal system, HVAC,clean laboratory and medical equipment etc.



High Accuracy 4-20ma 0-10v RS485 DP Differential Pressure Transmitter For Air 0

Product Show



High Accuracy 4-20ma 0-10v RS485 DP Differential Pressure Transmitter For Air 1High Accuracy 4-20ma 0-10v RS485 DP Differential Pressure Transmitter For Air 2High Accuracy 4-20ma 0-10v RS485 DP Differential Pressure Transmitter For Air 3High Accuracy 4-20ma 0-10v RS485 DP Differential Pressure Transmitter For Air 4High Accuracy 4-20ma 0-10v RS485 DP Differential Pressure Transmitter For Air 5



Applications

 High Accuracy 4-20ma 0-10v RS485 DP Differential Pressure Transmitter For Air 6

Certification

 High Accuracy 4-20ma 0-10v RS485 DP Differential Pressure Transmitter For Air 7

FAQ

 Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea

 Send us inquiry message at the bottom of this page to get reply within 2 hours
