उत्पत्ति के प्लेस:
चीन (महाद्वीप)
ब्रांड नाम:
WNK
प्रमाणन:
CE
मॉडल संख्या:
WNK83MA

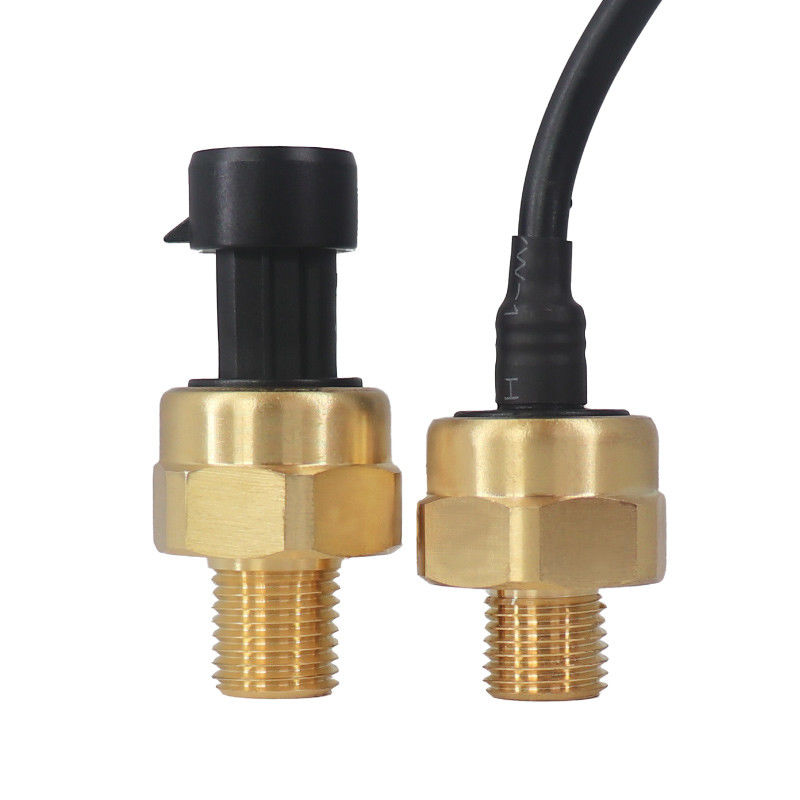

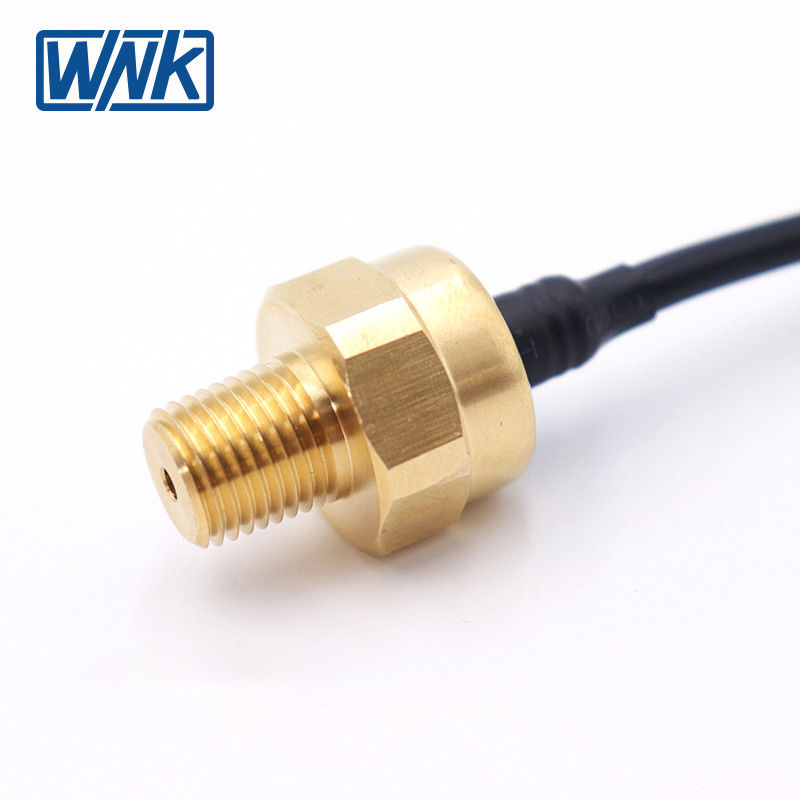

0.5-4.5V G1/4(M) Cable Outlet Brass Pressure Sensor For Liquid Oil Water
| Applicable media | Liquid, gas, steam |
| Pressure range | 0-10bar, 0-20bar |
| Cell | Ceramic capacitive pressure sensor |
| Pressure measurement | Gauge pressure, sealing pressure |
| Output | 0.5-4.5VDC |
| Power supply | 4.75-5.25VDC |
| Accuracy(linearity, hysteresis and repeatability) | 1%F.S. |
| Work temperature | -20~70ºC |
| Ambient temp | -40~110ºC |
| Temperature drift(zero) | ±0.15% F.S. (-20~70ºC) |
| Temperature drift(full range) | ±0.15% F.S. (-20~70ºC) |
| Electrical connection | Cable outlet |
| Mechanical connection | 1/4NPT |
| Housing material | Brass |
