Our company's main products include pressure sensors and transmitters, temperature transmitters and other measuring instruments. The company's products and services are widely applied in internet of things and smart cities such as: smart water, smart gas and smart fire.
Products Description

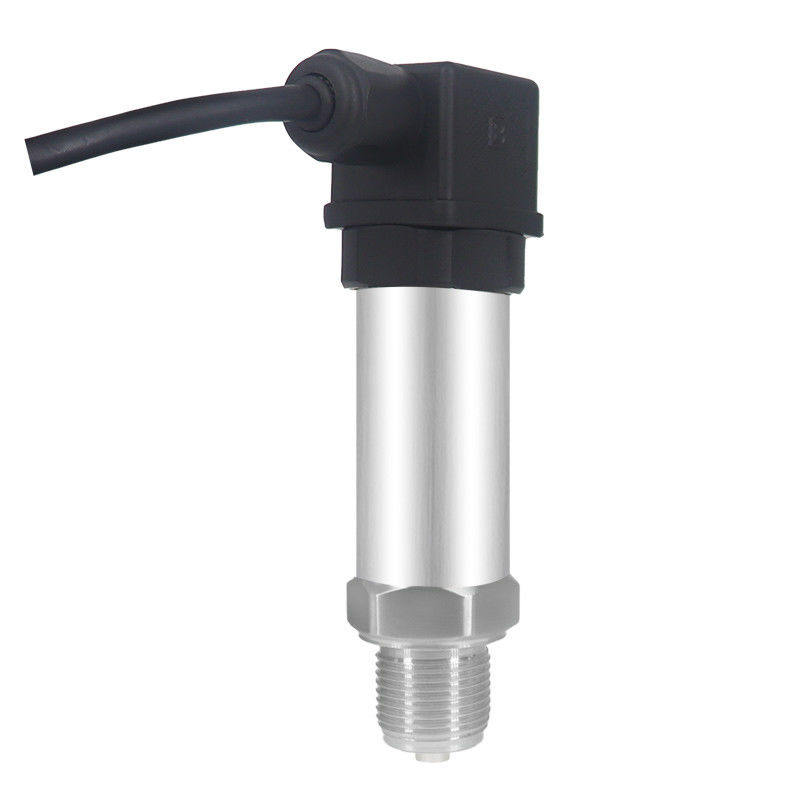

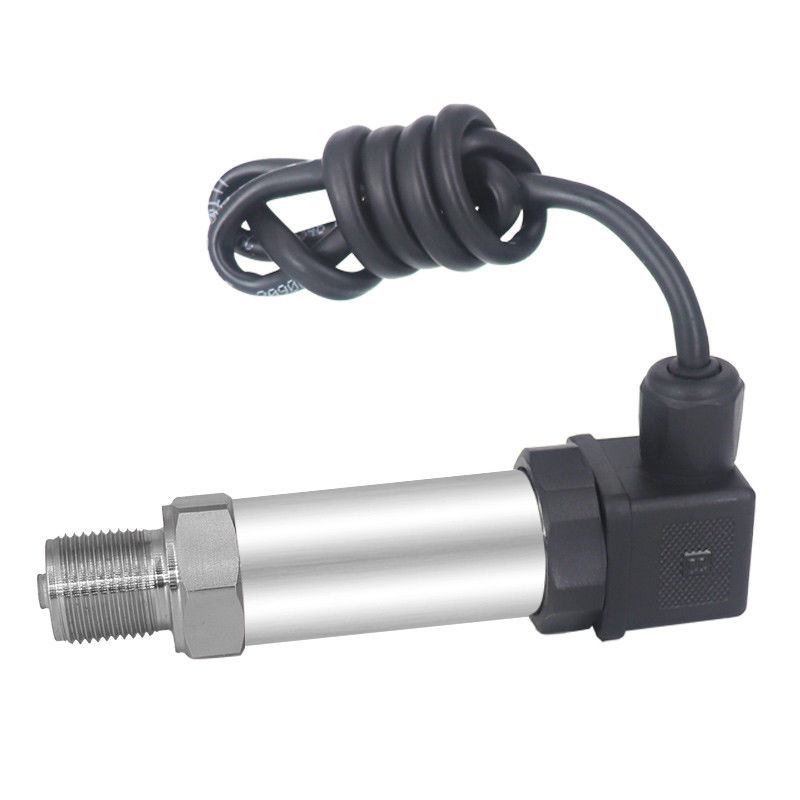

WNK805mA IP65 Capacitive IIC Lora Small Size Pressure Sensor
| WNK805 Gauge/Absolute Pressure Transmitter (Diffused silicon sensor) | |
| Applicable media | Liquid, Gas, Steam |
| Pressure range | -100kPa-0, 0-0.2~-100kPa, 0-0.2~1000kpa, 0-60MPa, 70MPa |
| Pressure measurement | Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure |
| Accuracy | 0.2% FS, 0.5% FS |
| Stability | ±0.25% FS/year |
| Zero drift | 50% of full range span. |
| Max overload | 200% of sensor range |
| Bandwidth / Response time | 1 millisecond (Optional for analog type) |
| Output signals | 4~20mA, 1-5V(optional) |
| Display | LED (Optional) |
| Housing material | 304 stainless steel |
| Mechanical connection | M20×1.5; 1/2-18NPT, 1/4NPT, G1/4, Customize |
| Protection class | IP65 |
| Power supply | Non-explosion: 10.5~45V DC |
| EEX ia:8~30 V DC | |
| Ambient temperature | -40~85℃ |
| Process temperature | -40~85℃ |
| -40~150℃ (diaphragm type, clamp type) | |
| Compensation temperature | -10~70℃ |
| Features |
1. WNK805 integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit. 2.With precise temperature characteristic compensation, it can be used reliably and stably 3.It is suitable for gas, liquid, steam pressure measurement and pressure measurement with corrosive media. |
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.
Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
