उत्पत्ति के प्लेस:
हेफ़ेई, सीएन
ब्रांड नाम:
WNK
प्रमाणन:
CE
मॉडल संख्या:
अनुसूचित जनजातियों

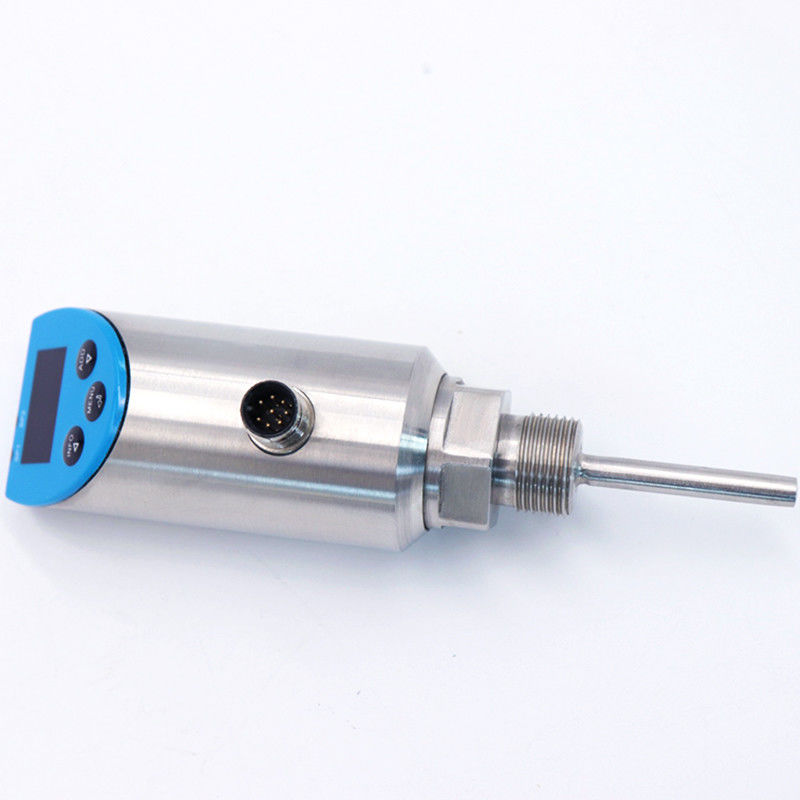

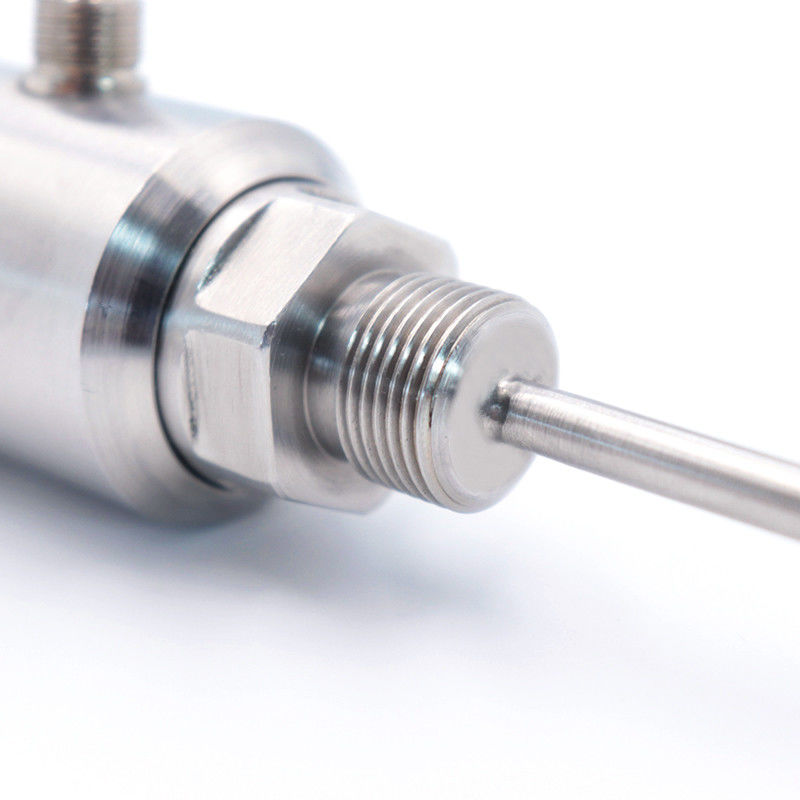

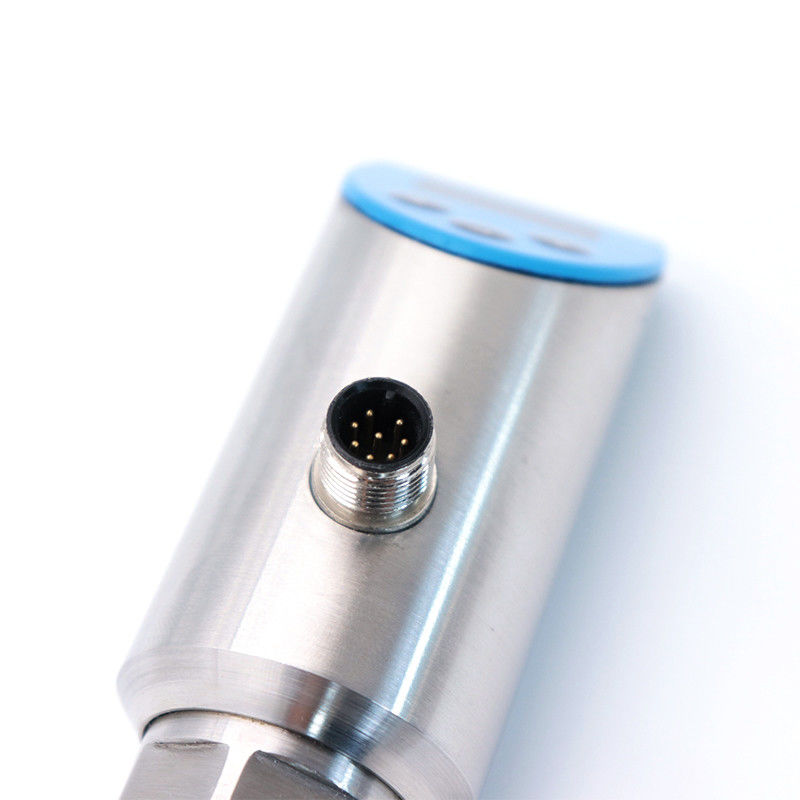

PT100 PT1000 Temperature Switch Water Pump Temperature Switch
Description
WNK temperature switch (STS) is suited for temperature monitoring, measurement and control, such as used in cleaning liquid, hydraulic oil, heat-carrying agent and lubricant etc. The STS provides optional two switching outputs (PNP or NPN), an analog output signal (0...20mA| 4…20 mA or 0...5V| 0…10 V) as well as with RS485 Link.
Specifications
| Product name | Electronic Smart Temperature Switch |
| Measuring range | -50260ºC |
| Accuracy | ≤±0.5ºC |
| Supply power | 1230V DC |
| Temp. Measuring element | PT1000 |
| Reponse time | < 10ms |
| Temp. drift | ±0.15%/10K |
| Resolution | ±0.01ºC |
| Analog output accuracy | ≤±0.2%FS |
| Output configurations | 2×PNP + 0V~5VDC/10VDC + MODBUS |
| 2×PNP + 0mA/4mA~20mADC + MODBUS | |
| Switch current | 1.0A(Max.) |
| Switching type | Normally open / closed (settable) |
| Switching reponce time | <10ms |
| Swith delay | 0.00s~1000.0s |
Feature:
Technical Data:
| Product name | Electronic Smart Temperature Switch |
| Measuring range | -50260ºC |
| Accuracy | ≤±0.5ºC |
| Supply power | 1230V DC |
| Temp. Measuring element | PT1000 |
| Reponse time | < 10ms |
| Temp. drift | ±0.15%/10K |
| Resolution | ±0.01ºC |
| Analog output accuracy | ≤±0.2%FS |
| Output configurations | 2×PNP + 0V~5VDC/10VDC + MODBUS |
| 2×PNP + 0mA/4mA~20mADC + MODBUS | |
| Switch current | 1.0A(Max.) |
| Switching type | Normally open / closed (settable) |
| Switching reponce time | <10ms |
| Swith delay | 0.00s~1000.0s |
Ordering sheet:
Product Show
Company Information
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
A: 12 month from shipment date, for non-man-made damages.
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
