OEM Compact Pressure Sensor Gas Water Pressure Sensor High Integration

OEM Compact Pressure Sensor Gas Water Pressure Sensor High Integration

oem pressure sensor

precision pressure sensor

उत्पत्ति के प्लेस:

हेफ़ेई, चीन

ब्रांड नाम:

WNK

प्रमाणन:

CE, SGS, ISO9001

मॉडल संख्या:

WNK80MA

हमसे संपर्क करें
बोली मांगें
Product Details
बिजली की आपूर्ति:
5वी डीसी 9-32वी
श्रेणी:
0-10 एमपीए
रैखिक सटीकता:
0.25%एफएस, 0.5%एफएस, 1.0%एफएस
दबाव बंदरगाह:
जी1/4, एनपीटी1/8 अन्य
सेंसर प्रकार:
सिरेमिक कैपेसिटिव सेंसर
बिजली का संपर्क:
छोटा हिर्शमैन, केबल लीड
प्रवेश संरक्षण:
IP67 IP65
प्रमुखता देना:

oem pressure sensor

,

precision pressure sensor

Payment & Shipping Terms
न्यूनतम आदेश मात्रा
5 टुकड़ा
मूल्य
negotiable
पैकेजिंग विवरण
समुद्र-योग्य पैकिंग या वायु-योग्य पैकिंग
प्रसव के समय
7-10 कार्य दिवस
भुगतान शर्तें
टी/टी, वेस्टर्न यूनियन, मनीग्राम
आपूर्ति की क्षमता
प्रति माह 5000 पीसी
RELATED PRODUCTS
अच्छा दाम Explosion Proof Compact Pressure Sensor With 4~20mA And High Accuracy 0.2%FS ऑनलाइन वीडियो

Explosion Proof Compact Pressure Sensor With 4~20mA And High Accuracy 0.2%FS

सबसे अच्छी कीमत प्राप्त करें

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

सबसे अच्छी कीमत प्राप्त करें

WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65

सबसे अच्छी कीमत प्राप्त करें

WNK 0.5-4.5V 4-20ma Smart Absolute Gauge Pressure Sensor For Water Air Oil

सबसे अच्छी कीमत प्राप्त करें
हमसे संपर्क करें
अब संपर्क करें
Product Description

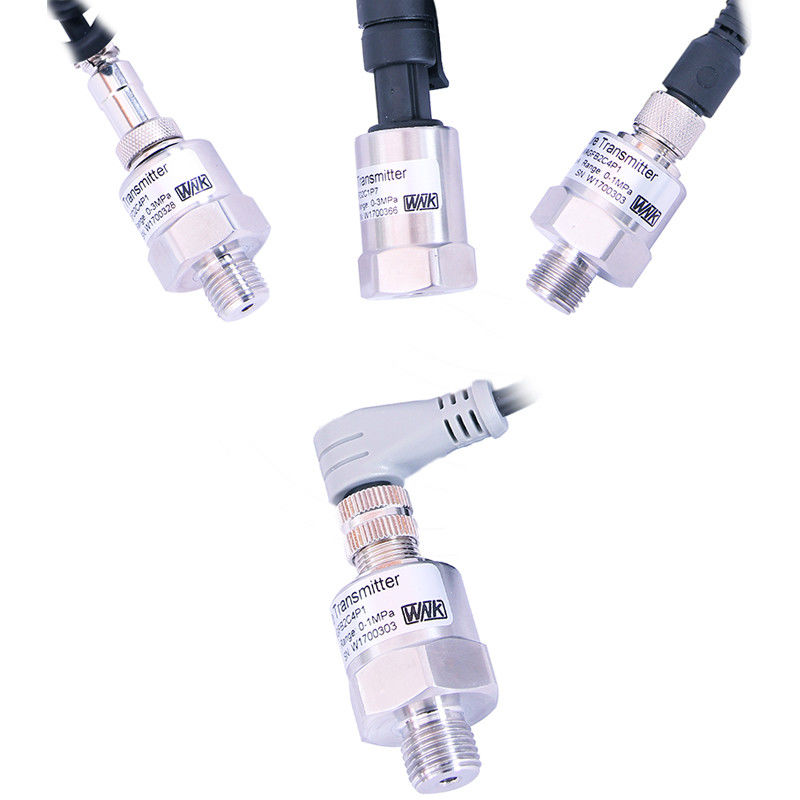

Stainless Steel Absolute Micro Compact Pressure Sensor 4-20ma 0.5-4.5V, I2C




Description

This product is high integration, small size, high precision, good stability, fast response speed, low power consumption, good consistency, resistance to overload ability strong impact and interference. With the function of over-voltage and over-current protection and the full temperature linear temperature compensation of this product which widely used in engine pipe of vehicle and ship, central air conditioner and freezing device, water treatment engineering, building water supply, industrial process detection and control, hydraulic pneumatic control engineering and other fields.

OEM Compact Pressure Sensor Gas Water Pressure Sensor High Integration 0

Features :
1. Temperature range: -20 to 85℃
2. Wide operation temperature range -40~125℃
3. High performance ceramic capacitive pressure sensor
4. Various 4~20mA/0.5~4.5V/1~5V/ 0~5V/ SPI/ I²C outputs available
5. Small dimensions, dimension customizble
6. Optional packard, M12, Small Hirschman connectors
7. OEM, ODM, customization service available
8. Process connector: G1/4, M12*1.5, 1/4NPT, 7/16-20UNF female


Application:

For oil,fuel,diesel,gas,water or air pressure.Can be used in oil tank,gas tank,diesel tank etc.
