उत्पत्ति के प्लेस:
अनहुई, चीन
ब्रांड नाम:
WNK
मॉडल संख्या:
WNK4S
वीडियो
वीडियो
वीडियो
वीडियो

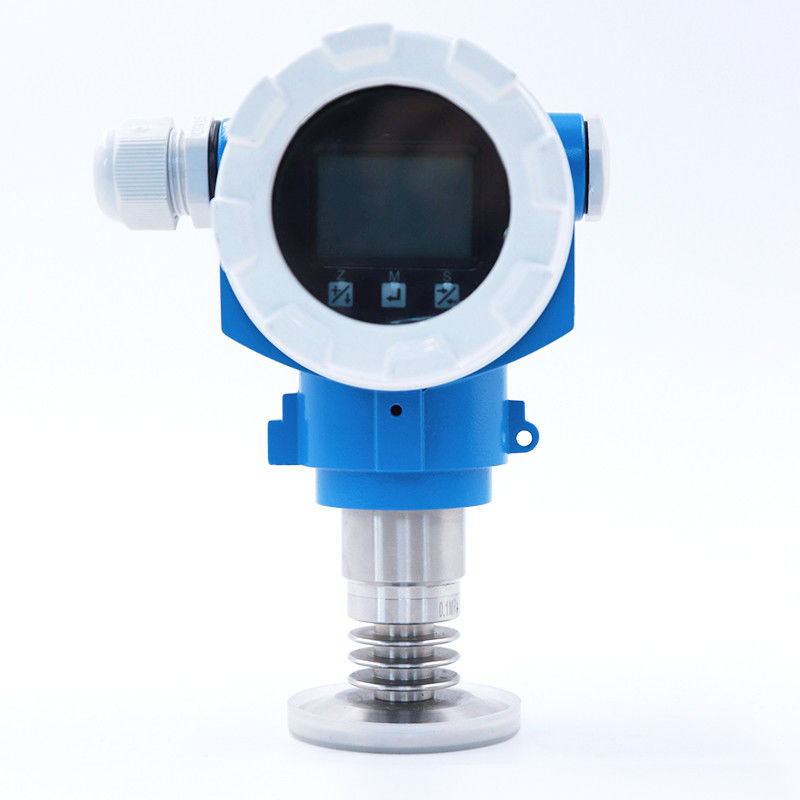

WNK4S pressure transmitter is the cost-effective model of pressure transmitters provided by Hefei WNk Smart Technology Co., ltd. It transforms the physical signal of pressure , differential pressure and level etc into standard signal, by collecting cell sensor and digital processing circuit.
WNK4S pressure transmitters are suitable for:
1.Gauge,absolute and differential pressure measurement in gases,steam or liquids in areas of process control field.
2.Level,volume or mass mearsurement in liquids.
|
Product Name
|
4-20mA DC MODBUS Protocol Low Pressure Transmitter for HVAC
|
|
Pressure measurment
|
liquid, gas and steam
|
|
Pressure range
|
-100kPa~70MPa
|
|
Accuracy
|
0.2%
|
|
Output
|
4~20mA, Modbus
|
|
Power supply
|
10.5-55V DC 10.5-30V DC
|
|
Mechanical connection
|
G1/2, G1/4, 1/2NPT etc
|
|
Housing material
|
Aluminum14
|
|
Ingress Protection
|
IP66/67
|
|
Ex-proof
|
ExiaII CT4/CT6, ExidIICT6
|
|
Ambient temperature
|
-40 to 85ºC,-40 to 80ºCfor LCD header
|
|
Storage temperature
|
-45 to 85ºC,-40 to 80ºC for LCD header
|
