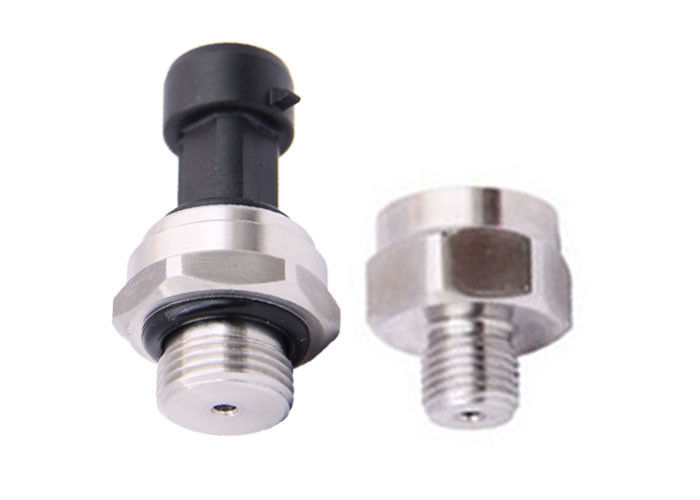

Name: Water Pump Compact Pressure Sensor 0.5-4.5V Output Anti-Freezing 0.5%FS Stability
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80MA
Price: 21.00 USD
Availability: InStock

घर > उत्पादों > Compact Pressure Sensor >

Water Pump Compact Pressure Sensor 0.5-4.5V Output Anti-Freezing 0.5%FS Stability

oem pressure sensor

precision pressure sensor

Compact Pressure Sensor Anti freezing

उत्पत्ति के प्लेस:

हेफ़ेई, चीन

ब्रांड नाम:

WNK

प्रमाणन:

CE, SGS, ISO9001

मॉडल संख्या:

WNK80MA

हमसे संपर्क करें

बोली मांगें

Water Pump Compact Pressure Sensor 0.5-4.5V Output Anti-Freezing 0.5%FS Stability

Product Details

इनपुट दबाव:

0-1.6MPa

स्थिरता:

+/-0.5%एफएस, +/-1.0% एफएस (विकल्प के लिए)

सेंसर तत्व:

सिरेमिक कैपेसिटिव सेंसर

संरक्षण ग्रेड:

आईपी67, आईपी65

प्रकार:

गेज, निरपेक्ष

वोल्टेज इनपुट:

5VDC, 12VDC, 24VDC, 9-30V डीसी

कार्य तापमान:

-20C - 70C

प्रमुखता देना:

oem pressure sensor

precision pressure sensor

Compact Pressure Sensor Anti freezing

Payment & Shipping Terms

न्यूनतम आदेश मात्रा

5 टुकड़ा

मूल्य

negotiable

पैकेजिंग विवरण

समुद्र-योग्य पैकिंग या वायु-योग्य पैकिंग

प्रसव के समय

7-10 कार्य दिवस

भुगतान शर्तें

टी/टी, वेस्टर्न यूनियन, मनीग्राम

आपूर्ति की क्षमता

प्रति माह 5000 पीसी

Explosion Proof Compact Pressure Sensor With 4~20mA And High Accuracy 0.2%FS

सबसे अच्छी कीमत प्राप्त करें

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

सबसे अच्छी कीमत प्राप्त करें

WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65

सबसे अच्छी कीमत प्राप्त करें

WNK 0.5-4.5V 4-20ma Smart Absolute Gauge Pressure Sensor For Water Air Oil

सबसे अच्छी कीमत प्राप्त करें

हमसे संपर्क करें

अब संपर्क करें

Product Description

Water Pump Compact Pressure Sensor 0.5-4.5V Output Anti-freezing 0.5%FS Stability

Description

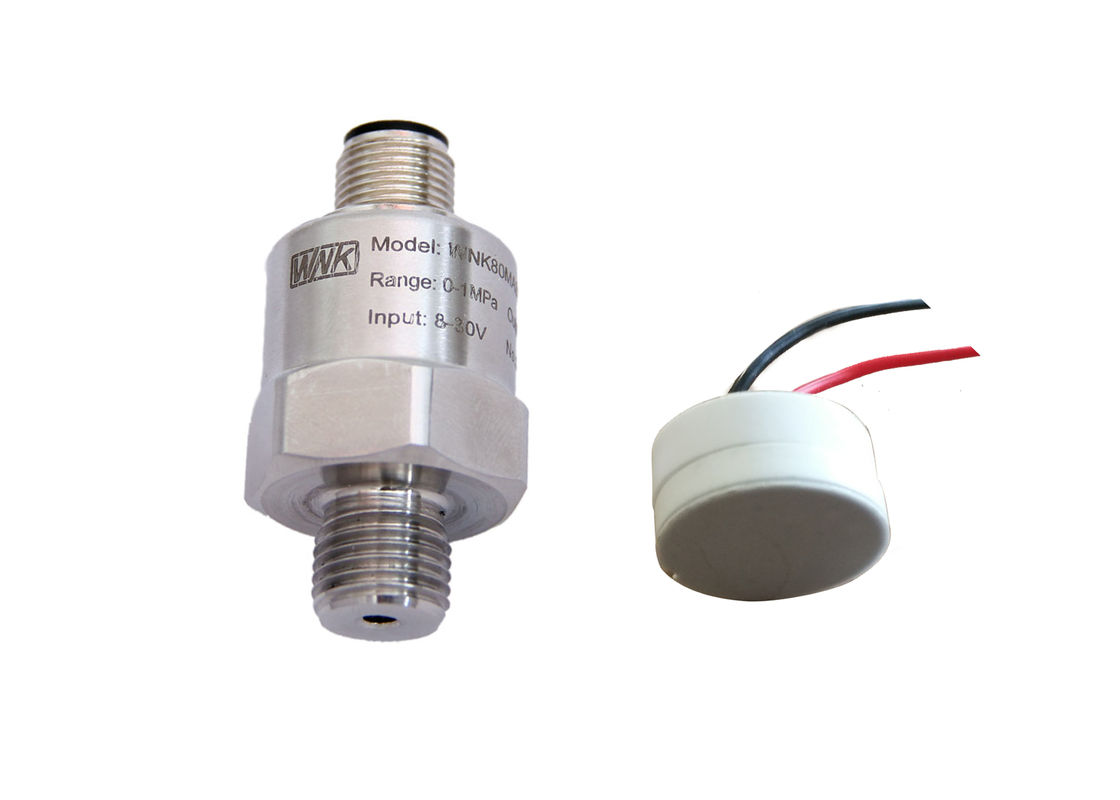

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 100 times of the range, completely solved poor overload in small range of other sensors. With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

Technical Data

Applicable media	Liquid, Gas
Pressure range	0-1.6Mpa , 0-20Mpa, Customized
Pressure measurment	Gauge Pressure
Output	0.5-4.5V/4-20mA
Accuracy(linearity,Hysteresis and Repeatability)	0.5%F.S.(Typical), 1.0%FS ( for option)
Power supply	24VDC/12VDC/5VDC
Compensation temperature	-20~70ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
power(electrical) connect	Parkard, M12, DIN43650, Cable outlet, Other
Mechanical connection	G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material	304 stainless steel

Application:

For oil,fuel,diesel,gas,water or air pressure.Can be used in oil tank,gas tank,diesel tank etc.
