उत्पत्ति के प्लेस:
हेफ़ेई, चीन
ब्रांड नाम:
WNK
प्रमाणन:
ISO
मॉडल संख्या:
WNK6T

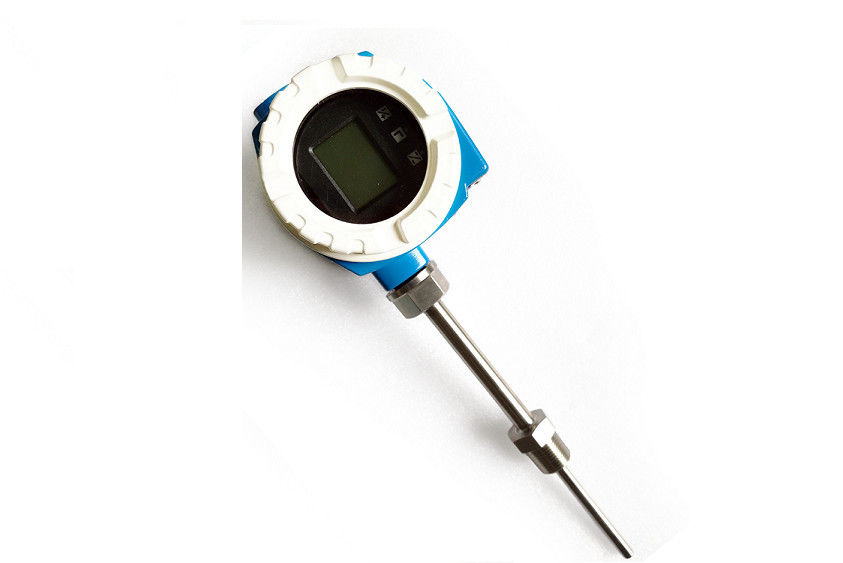

LCD 4-20ma PT100 RTD Smart Temperature Transmitter With Hart Protocol
WNK temperature transmitter is Cost-effective model. For temperature sensor we can provide the thermal resister, thermocouple etc usually used in industry, we can also provide special sensor, including high temperature type,high pressure type,health type,with special material or with coating etc sensor. Customized sensor is also acceptable.
Features
1. Long-term drift<0.1/year
2. Install easily, more flexiable
3. 4~20mA/RS485 output
4. Self-diagnostics function
| Measuring media | liquid, gas | ||
| Measuring range | -270~800 ℃ (PT100 thermal resistor) | ||
| 0~1300℃, (Thermocouple K) | |||
| Power supply range | 9~45V (9~24V, Ex) | ||
| Output signal | 4~20mA, RS485 | ||
| Digital Accuracy | ±0.04℃, PT100 input | ||
| Internal cold end compensation error | ＜0.25℃±0.1%/10℃ | ||
| Temperature drift | ±0.05%/10℃full-scale range | ||
| 0.1% between-10°C to 60°C | |||
| Effect of power supply on range | ＜0.005%/V full-scale range | ||
| Long term drift | ＜0.1/year | ||
| Allowable temperature | Ambient temperature | Storage temperature | |
| T4 | Safe operation(T6) | ||
| -40...85℃ | -40...60℃ | -40...95℃ | |
| Protection Class | IP66/67 | ||
| Relative humidity | ≤98%, condensation allowed | ||
| Electromagnetic compatibility | Accordance with EN 61 326 | ||
