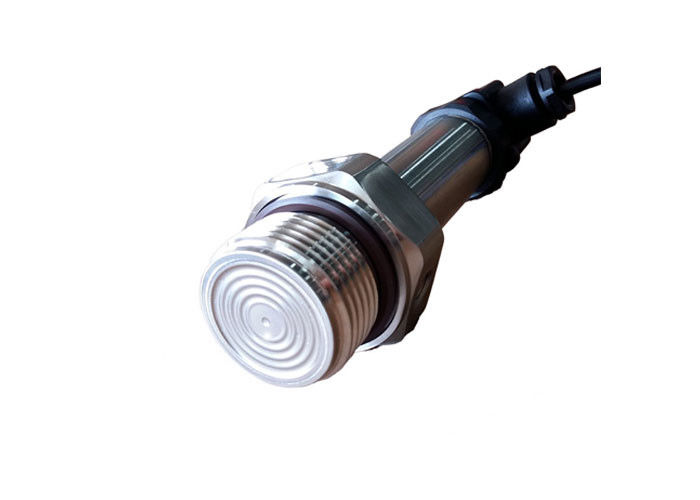

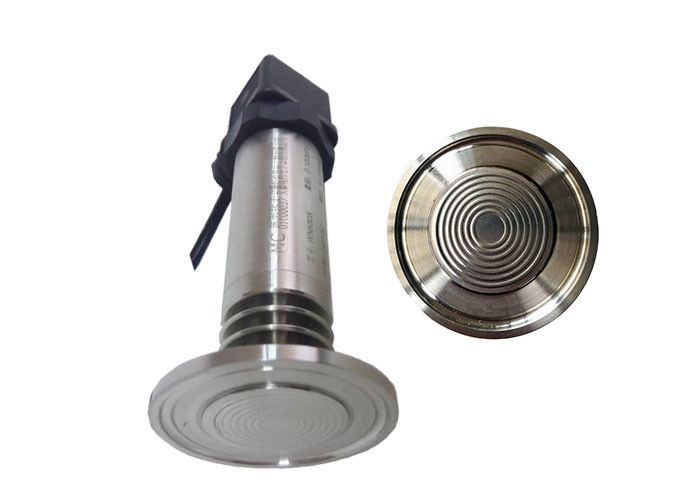

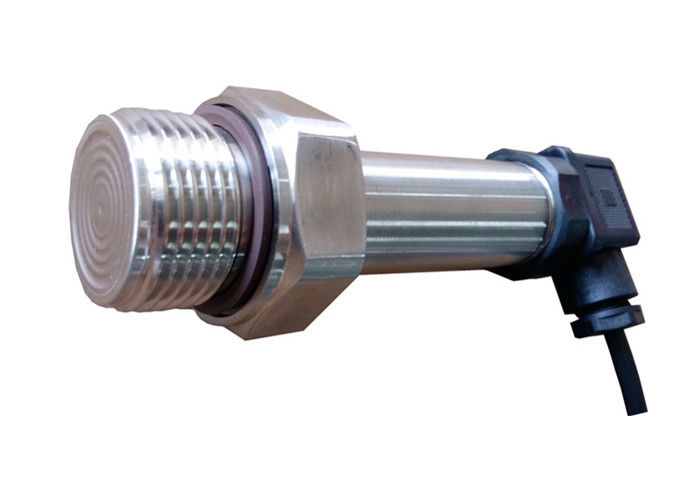

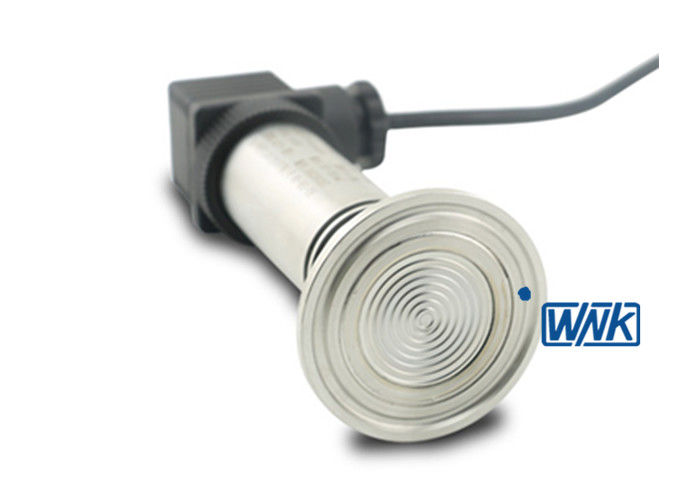

Clamp Type Silicon Oil-Filled Flush Membrane Sanitary Pressure Sensor
Description
Sanitary Flush flat Diaphragm membrane pressure transducer is a kind of pressure sensor commonly used in industrial practice. It is widely used in a variety of industrial automation environments, involving oil pipelines, water conservancy and hydropower, railway traffic, intelligent building, production control, aerospace, military, petrochemical, oil wells, Electricity, ships, machine tools, pipeline air supply, boiler vacuum and many other industries.
Application
It is widely used in a variety of industrial automation environments, involving oil pipelines, water conservancy and hydropower, railway traffic, intelligent building, production control, aerospace, military, petrochemical, oil wells, Electricity, ships, machine tools, pipeline air supply, boiler vacuum and many other industries.
Detailed Technical Info:
| Pressure range | 0-0.2 ~ -100kPa; 0-0.2 ~ 1000kPa 60000kPa | |||
| Rangedown | 100:1 | |||
| Permissible temperature | Compensation Temperature | Media Temperature | Environment Temperature | Storage Temperature |
| -30~70℃ | -20~85℃ | -20~85℃ | -45~85℃ | |
| Accuracy | 0.1%FS, 0.25%FS, 0.5%FS, 1.0%FS | |||
| Output signals | 4~20mA, 0~5V, 1~5V, 0~10V | |||
| Long-term stability | 0.25%FS/year | |||
| Power supply | 24VDC | |||
| Protection class | IP65 | |||
| Electrical connection | DIN43650, M12, Direct lead, Small Hirschman | |||
| Mechanical connection | G1/2, M20*1.5,1/2NPT,1/4NPT,customization | |||
| Repeat | 0.05, 0.1%FS | |||
| Overload | 1.5~2 times | |||
| Housing material | SS304 | |||
Competitive Advantages:
1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
