उत्पत्ति के प्लेस:
हेफ़ेई, चीन
ब्रांड नाम:
WNK
प्रमाणन:
CE, SGS, ISO9001
मॉडल संख्या:
WNK80MA-2
वीडियो

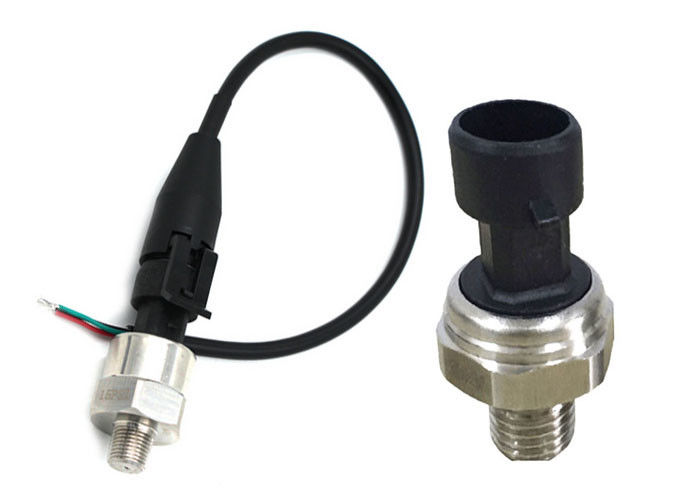

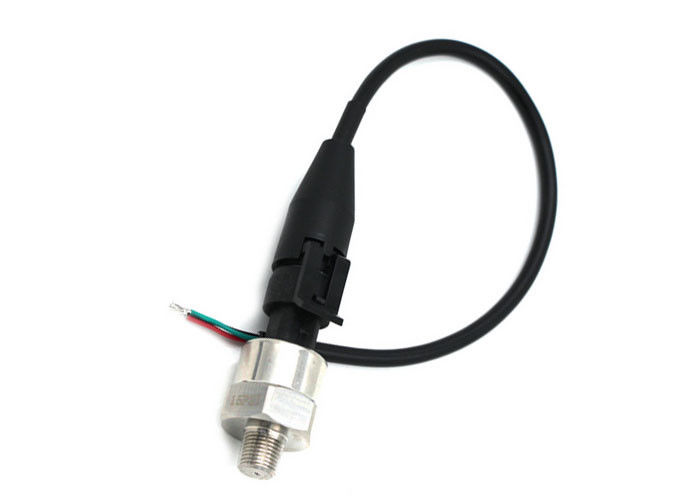

Capacitive Ceramic Compact Pressure Sensor For Water Heaters And Gas Stoves
Specification:
Working voltage: 5V 8-32 VDC
Working temperature: -40 ~ 125 ° C
Output signal: voltage type, 0, 5,--4 5 v standard signal. Current mode, 4-20 ma standard signal output
Precision: 0 25% and 0 5%, 1% (0-80. C)
Response time: < 1 ms
Temperature drift: < + 0 01% FS /. c
Linearity, hysteresis, repeatability: < 0.1%
Stability: better than 015% FS/year
The shell material: stainless steel, aluminum, alloy, or according to customer needs.
NPT a 1/8, NPT thread interface: a quarter or the user can customize
Electrical connections: standard Packa rd Met ri - Pack connection
Features
• Dry ceramic capacitive pressure sensor;
• Rugged ceramic capacitor sensitive diaphragm;
•Excellent resistance to corrosion and abrasion resistance;
• Adapt to pollution and corrosive environments;
• Flat large round diaphragm, easy to install;
• Rapid response, no hysteresis;
• Wide operating temperature range;
• Sensor-specific signal conditioning;
• 0.5 ... 4.5V voltage output or I2C digital output, 4-20mA output;
• Accurate, stable and reliable;
Application:
For oil,fuel,diesel,gas,water or air pressure.Can be used in oil tank,gas tank,diesel tank etc.
