उत्पत्ति के प्लेस:
हेफ़ेई, चीन
ब्रांड नाम:
WNK
प्रमाणन:
CE, SGS, ISO9001
मॉडल संख्या:
WNK80MA
वीडियो
Description

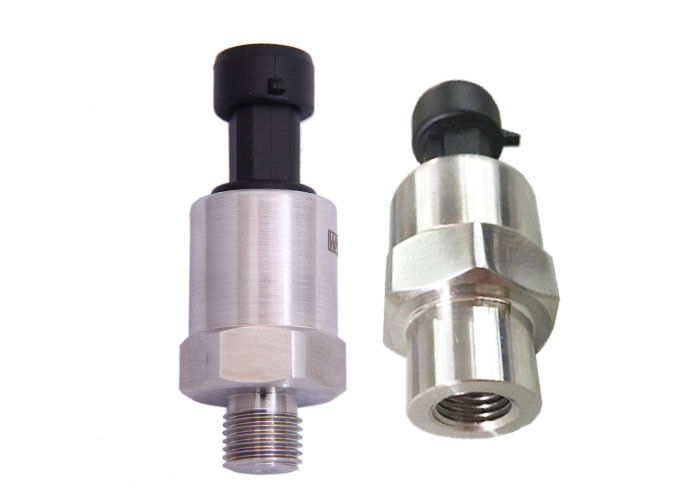

WNK80MA is a series of high performance with compact size and the function of over-voltage and over-current protection and the full temperature linear temperature compensation of this product which widely used in engine pipe of vehicle and ship, central air conditioner and freezing device, water treatment engineering, building water supply, industrial process detection and control, hydraulic pneumatic control engineering and other fields.
Specification:
|
Applicable media
|
Liquid, Gas
|
|
Pressure range
|
0-7kPa~350bar
|
|
Pressure measurment
|
Gauge Pressure, Absolute pressure, Sealing pressure
|
|
Output
|
4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
|
|
Accuracy(linearity,Hysteresis and Repeatability)
|
0.5%F.S.(Typical)
|
|
Power supply
|
24VDC/12VDC/5VDC/3.3V
|
|
Compensation temperature
|
-20~85ºC
|
|
Ambient temperature
|
-40~125ºC
|
|
Working temperature
|
-40~125ºC
|
|
Temperature drift(zero)
|
±0.15% F.S. (-20~85ºC)
|
|
Temperature drift(full range)
|
±0.15% F.S. (-20~85ºC)
|
|
power(electrical) connect
|
Parkard, M12, DIN43650, Cable outlet
|
|
Mechanical connection
|
G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
|
|
Housing material
|
304 stainless steel(inner core is 316 stainless steel)
|
|
Protection
|
IP65
|
