Deep Wells Pool Sewage Water Submersible Level Sensor I2C Output

IP68 Underwater Submersible Level Sensor for Depth Measurement 4~20mA Output

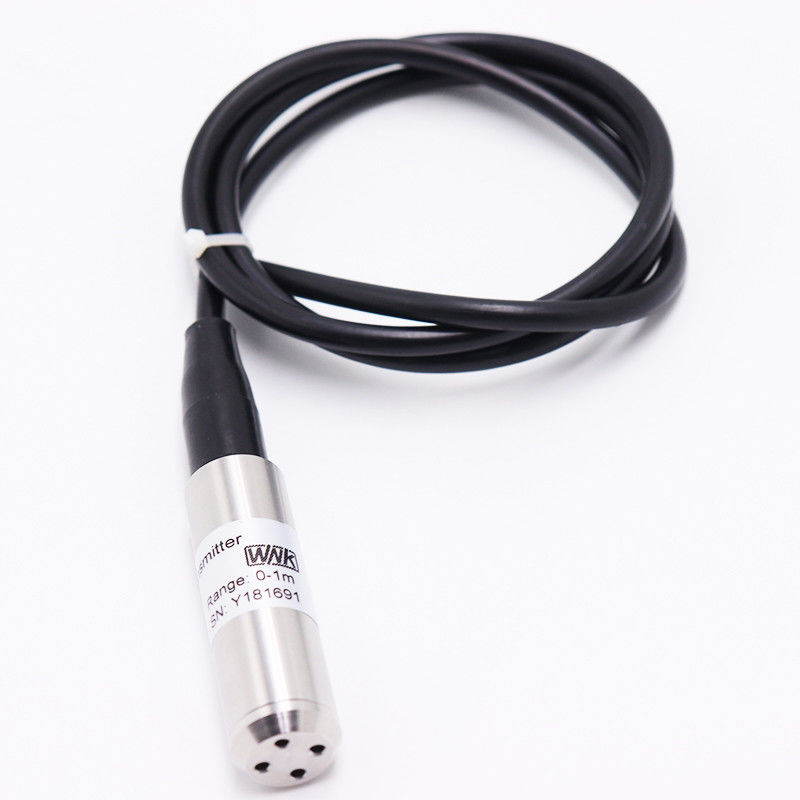

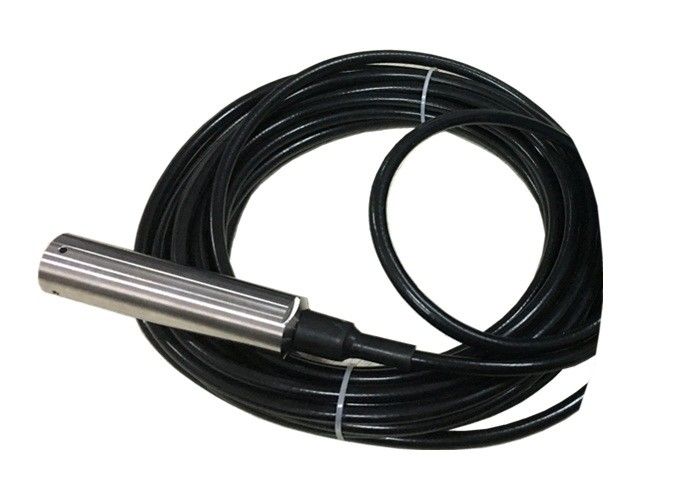

WNK8010 is a submersible water level sensor transducer suitable for liquid level or pressure and depth measurement. With diffused silicon internal sensor, WNK8010 offers long-term accurate and stable level monitoring. It is made of stainless steel housing. Its all stainless steel, suitable for immersion in most industrial liquids and oils.The welded housing is tested in-house via a helium leak tester to ensure proper protection. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage.Ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the tank.

Our WNK8010 submersible fuel / water level sensor can be used to measure water level, fuel level and other liquid level; well depth; groundwater level; bore well, underground water, river etc,.

Quick information:

• High accuracy up to ±0.2%FS;
• Wide application range 0-0.5~200m H2O;
• Various output 4~20mA, 0~10mA, 0~5V, 1~5V and etc;
• High overload 1.5 times;
• Good long-term stability 0.25%FS/Year;
• Corrosive resistance cable of PTFE;
• Waterproof, protection class IP68;
• OEM, ODM, customize;

Detailed Technical Info:

Competitive Advantages:

1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
